HD Hyundai Xitesolution - Material Handling has introduced the BE-X range of electric forklifts trucks, broadening its appeal in the compact market and delivering a cost-effective materials handling solution for non-production users. There are two canopy machines, with rated loads of 1.6 and 2.0-tonnes, alongside three full-cabbed models, capable of lifting 2.5, 3.0 and 3.5-tonnes.
• Choice of proven deep drop type batteries or optional lithium-ion
• Energy efficient drive axles reduce electrical consumption
• Single drive axle with IP54 motor for outdoor environments
• Ergonomically designed operator station with adjustable steering column
• Multiple systems for optimum operating safety
16/20 BE-X
The 16BE-X and 20BE-X have maximum rated loads of 1.6 and 2.0-tonnes respectively. Weighing in at 3,323kg and 3,677kg, the masted forklift trucks can be equipped with a two-stage limited free lift mast, or a three-stage full free lift mast. Maximum fork height for the two-stage mast is 3,000-5,000mm, rising to 4,000-6,000mm for the three-stage mast.
Though aimed at customers for whom full-time forklift use is not a requirement, the compact BE-X trucks deliver outstanding productivity. With the best energy efficiency in their class, the two BE-X machines use a drive axle with a 12% energy efficiency enhancement when compared to the previous B-9F machine. This single drive system has a low noise output that is down 8.7dB at the driver’s seat, when compared to the previous machine.
Both machines use a single-drive axle with an IP54 rated motor, that allows outdoor use in varying weather. The deep drop frame delivers a low centre of gravity, with batteries positioned between the front and rear wheels. They can be supplied with a lead acid battery, with a capacity of 420Ah, or with a LiFePo4 lithium-ion battery with a capacity of 300Ah. The latter offers a two-hour quick charge for a two-shift operation. Batteries can be charged using a connector port to the side of the machine or the entire deep drop battery can be removed from the side of the machine using a hand pallet truck.

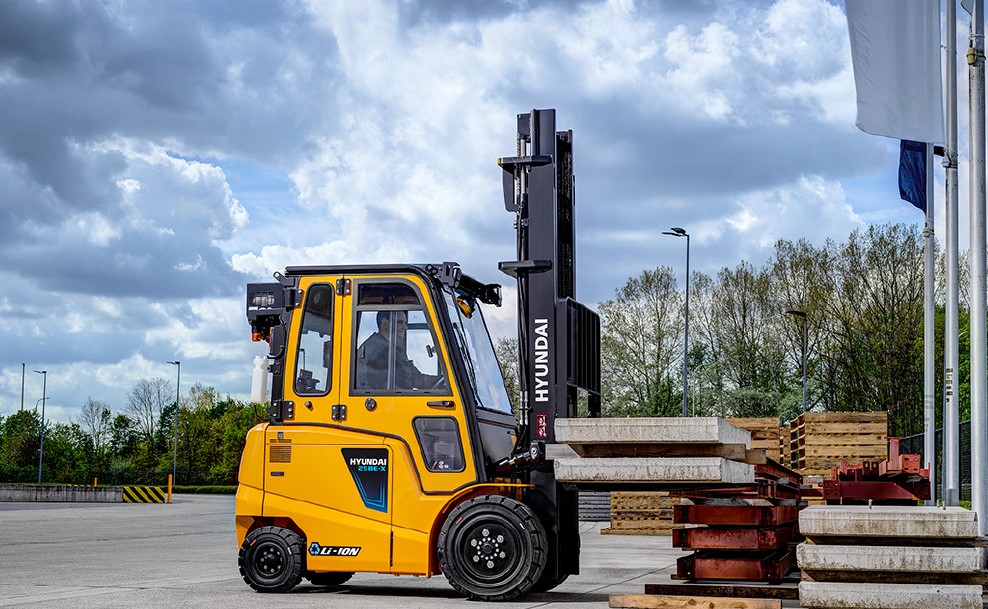

25/30/35BE-X
HD Hyundai’s 25BE-X, 30BE-X and 35BE-X have operating weights of 4,484kg, 4,947kg and 5,272kg respectively. They boast rated load capacities of 2.5, 3.0 and 3.5-tonnes. They can be equipped with a two-stage limited free lift mast, offering a maximum fork height of 3,005-5,005mm. There is also the choice of a two-stage full free lift mast, offering 2,955-3,455mm of fork height and a three-stage full free lift mast with a fork height of 4,305-6,005mm.
Energy efficiency is also at the centre of the design of these heavier models, with the drive assemblies saving 8.2% over the 9F Series of machines. Single-drive axles and IP54 motors again allow indoor and outdoor use and the noise reduction in the case of these models is 6.5dB compared to the previous generation.
A 48V 600Ah battery pack is used to power the 25BE-X, with a larger 80V, 500Ah battery for the two larger models. Again, more efficient lithium-ion batteries can be specified if preferred, allowing rapid charging and extended hours of operation if required.
Operator comfort
As with all HD Hyundai Xitesolution equipment, the machines have a comfortable operator station with a standard Grammer full suspension seat available. Control levers are conveniently mounted to the right of the driver, reducing physical effort when compared to dashboard fixed levers. The deep drop battery design contributes to a low floor and operator seat, with the first step mounted around 98mm lower than a conventional forklift. The steering has hydraulic assistance and the steering column can be tilted forwards or backwards to suit the operator.
The BE-X forklift trucks have an anti-roll back system to prevent the machine from rolling down an incline when the accelerator or brake pedals are not applied. This system also makes it easier to pull away on a ramp. An operator presence sensing system (OPSS) is also standard, restricting driving and lifting operations when the operator leaves the driving seat.
Maximum travel speeds can be set to meet individual site speed limits through the multi-function monitor in the operator compartment. The machines have three working modes, with separate drive and lifting speeds, along with a turtle mode, that reduces the maximum speed in the set mode.
Optional safety systems include the ability to limit travel speed to 3km/h when driving with an elevated load above 500mm. Customers can also specify optional front and rear cameras, with a two-channel monitor, a rear grip bar with warning horn and a range of LED working lamps and safety warning lamps.
Market solution
Building upon years of experience within HD Hyundai Xitesolution, the BE-X machines incorporate all of the engineering and quality that customers expect, such as waterproof and dustproof key switches and sealed micro switches in the hydraulic control lever system, to prevent breakdowns in dusty working conditions. HD Hyundai quality and durability are built in at every stage with the BE-X models. However, a reduced specifications allows the forklift trucks to compete at a more cost-conscious level than some of the company’s top-end equipment.
BE-X forklift trucks will suit those operators for whom materials handling is not the main focus of the business. Though capable of highly productive, full-shift use, the BE-X forklift truck range offers an alternative for customers that want the premium benefits of an HD Hyundai Xitesolution machine, at a lower entry cost.
